Mila::Dnn::QwenTransformer< TDeviceType, TPrecision, TWeightPlan, TKvCachePolicy > Class Template Reference

Qwen 3.8 transformer (decoder-only) for autoregressive inference. More...

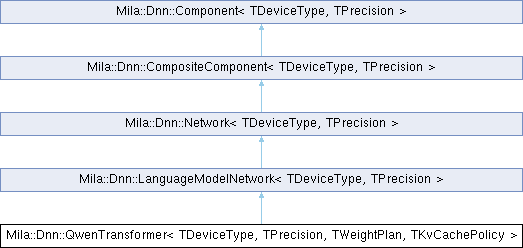

Inheritance diagram for Mila::Dnn::QwenTransformer< TDeviceType, TPrecision, TWeightPlan, TKvCachePolicy >:

Public Types
using	AttentionBlockType = QwenAttentionBlock<TDeviceType, TPrecision, TWeightPlan, TKvCachePolicy>
using	ComponentPtr = typename NetworkBase::ComponentPtr
using	DeltaNetBlockType = QwenDeltaNetBlock<TDeviceType, TPrecision, TWeightPlan>
using	LmHeadLinearType = Linear<TDeviceType, TPrecision, typename PrecisionPlan::LanguageModelHead>
using	MR = typename DeviceTypeTraits<TDeviceType>::memory_resource
using	NetworkBase = LanguageModelNetwork<TDeviceType, TPrecision>
using	PrecisionPlan = PrecisionPlanFor<TWeightPlan>
using	RmsNormType = RmsNorm<TDeviceType, TPrecision>
using	TensorType = Tensor<TPrecision, MR>
using	TokenEmbeddingType
using	TokenIndexType = Tensor<dtype_t::INT32, MR>
using	TransformerBlockType = ITransformerBlock<TDeviceType, TPrecision>
Public Types inherited from Mila::Dnn::LanguageModelNetwork< TDeviceType, TPrecision >
using	MR = typename DeviceTypeTraits<TDeviceType>::memory_resource
using	NetworkBase = Network<TDeviceType, TPrecision>
using	TensorType = Tensor<TPrecision, MR>
using	TokenIndexType = Tensor<TensorDataType::INT32, MR>
Public Types inherited from Mila::Dnn::Network< TDeviceType, TPrecision >
using	ComponentPtr = typename CompositeBase::ComponentPtr
using	CompositeBase = CompositeComponent<TDeviceType, TPrecision>
using	MR = typename DeviceTypeTraits<TDeviceType>::memory_resource
Public Types inherited from Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >
using	ComponentBase = Component<TDeviceType, TPrecision>
using	ComponentPtr = std::shared_ptr<Component<TDeviceType, TPrecision>>

Public Member Functions
	QwenTransformer (const std::string &name, const QwenConfig &config, DeviceId device_id)
TokenIndexType &	backward (const TokenIndexType &, const TensorType &) override
TensorType &	decode (const TokenIndexType &input, dim_t position) override
TensorType &	forward (const TokenIndexType &) override
MemoryStats	getMemoryStats () const override
	Return the current memory allocation breakdown for this component.
ModelType	getModelType () const
MemoryStats	getRequiredMemory (const BuildContext &context) const override
	What build( context ) would allocate for the whole model, without allocating.
void	loadParameters (WeightsReader &reader)
TensorType &	prefill (const TokenIndexType &input) override
PrefillChunking	prefillChunking (dim_t B, dim_t T_ctx) const
	The prefill chunk this context length would use, and the largest the context permits.
TensorType &	prefillFrom (const TokenIndexType &input, dim_t start_offset) override
	Chunked prefill starting at an absolute position (prompt-prefix reuse).
void	resetKvCache ()
bool	rewindKvCache (dim_t position) override
	Rewind every layer's cache to position.
SequenceLogLikelihood	scoreTokens (const TokenIndexType &input) override
	Teacher-forced log-likelihood of input – the corpus-perplexity path.
std::string	toString () const override
	Generate a human-readable description.
Public Member Functions inherited from Mila::Dnn::LanguageModelNetwork< TDeviceType, TPrecision >
	LanguageModelNetwork (const std::string &name)
virtual TokenIndexType &	backward (const TokenIndexType &input, const TensorType &output_grad)=0
	Full backward pass (training).
virtual TensorType &	decode (const TokenIndexType &input, dim_t position)=0
	Inference decode – single-token autoregressive step.
virtual TensorType &	forward (const TokenIndexType &input)=0
	Full-sequence forward pass – the training path, not the generation path.
virtual TensorType &	prefill (const TokenIndexType &input)=0
	Inference prefill – process full prompt and populate the KV cache.
virtual TensorType &	prefillFrom (const TokenIndexType &input, dim_t start_offset)
	Chunked prefill starting at an absolute position (prompt-prefix reuse).
virtual SequenceLogLikelihood	scoreTokens (const TokenIndexType &input)
	Rewind the KV caches to position for prompt-prefix reuse (PromptCaching.md).
Public Member Functions inherited from Mila::Dnn::Network< TDeviceType, TPrecision >
	Network (const std::string &name)
	Construct network (context managed by derived class).
template<typename TOptimizer, typename TConfig>
std::shared_ptr< TOptimizer >	createOptimizer (const TConfig &config)
	Create and configure an optimizer for this network's parameters.
DeviceId	getDeviceId () const noexcept override
	Get the compute device for this composite.
const ComponentType	getType () const override
	Get the component type identifier.
void	load (ModelArchive &archive, SerializationMode mode)
	Restore this network's parameters from an archive.
void	save (ModelArchive &archive, SerializationMode mode) const
	Save network to archive.
void	synchronize () override
	Synchronize all child components.
Public Member Functions inherited from Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >
	CompositeComponent (CompositeComponent &&) noexcept=default
	CompositeComponent (const CompositeComponent &)=delete
	CompositeComponent (const std::string &name)
	Construct composite component with name.
CompositeComponent &	addComponent (ComponentPtr component)
	Add a pre-constructed child component (chainable).
size_t	childCount () const noexcept
	Get the number of direct children.
void	clearComponents ()
	Clear all child components.
std::vector< std::string >	componentPaths () const
	Every component path in this subtree, in traversal order.
ComponentPtr	findComponent (const std::string &path) const
	Resolve a dot-separated component path within this composite.
ComponentPtr	getComponent (const std::string &name) const
	Retrieve a direct child component by name.
const std::vector< ComponentPtr > &	getComponents () const
	Get all child components in insertion order.
std::vector< ITensor * >	getGradients () const override
	Get all parameter gradients from all children.
std::vector< ITensor * >	getParameters () const override
	Get all parameters from all children.
bool	hasChildren () const noexcept
	Check if this composite has any children.
bool	hasComponent (const std::string &name) const
	Check if a named child component exists.
size_t	observe (std::string_view pattern, Compute::ComputePassMask passes, Compute::ActivationObserver sink)
	Attach sink to every component in this subtree whose path matches.
CompositeComponent &	operator= (CompositeComponent &&) noexcept=default
CompositeComponent &	operator= (const CompositeComponent &)=delete
dim_t	parameterCount () const override
	Count parameters across all children.
bool	removeComponent (const std::string &name)
	Remove a child component by name.
void	saveFlatTensors (Serialization::SafeTensorsWriter &writer, const std::string &prefix, Serialization::TensorSavePass pass) const override
	Recurse into children, extending the flat dotted prefix.
void	stopObserving ()
	Detach every observer in this subtree and clear the shared sink.
ComponentPtr	tryFindComponent (const std::string &path) const
	Try to resolve a dot-separated component path within this composite.
Public Member Functions inherited from Mila::Dnn::Component< TDeviceType, TPrecision >
	Component (const std::string &name)
	Construct component with required name identifier.
virtual void	build (const BuildContext &context) final
	Build the component with the provided BuildContext (canonical overload).
IExecutionContext *	getExecutionContext () const
	Get the shared execution context.
const std::string	getName () const
	Get the component's name identifier.
virtual std::vector< ObservableStage >	getObservableStages () const
	Stages this component publishes, and the passes each is published on.
Compute::ComputePassMask	getObservedPasses () const noexcept
virtual std::vector< const ITensor * >	getOutputs () const
	Return non-owning pointers to the tensors this component produces.
virtual std::vector< std::string >	getParameterNames () const
	List all available parameter names for this component.
RuntimeMode	getRuntimeMode () const noexcept
TrainingMode	getTrainingMode () const noexcept
	The current runtime behavioral mode of this Component.
virtual bool	isBuilt () const final
	Returns true if build() has completed successfully.
bool	isInferenceMode () const noexcept
bool	isTrainingMode () const noexcept
virtual void	loadParameter (const std::string &, const Serialization::ITensorBlob &)
	Load a parameter from serialized tensor data.
void	setObservedPasses (Compute::ComputePassMask passes) noexcept
	Select which passes this component publishes on.
void	setTrainingMode (TrainingMode mode)
	Set the runtime behavioral mode for this Component.
virtual void	zeroGradients ()
	Clear all model-owned gradients for this component.

Static Public Attributes
static constexpr EmbeddingTableResidency	kEmbeddingTableResidency

Protected Member Functions
void	onBuilding (const BuildContext &context) override
	Hook invoked by build() to allocate component buffers.
void	onTrainingModeChanging (TrainingMode training_mode) override
	Hook invoked when training mode is about to change.
void	save_ (ModelArchive &archive, SerializationMode) const override
	Hook for concrete classes to save type-specific state.
Protected Member Functions inherited from Mila::Dnn::Network< TDeviceType, TPrecision >
virtual void	load_ (ModelArchive &archive, SerializationMode mode) override
	Hook for concrete classes to validate type-specific state on load.
void	verifyArchitectureCompatibility (const WeightsMetadata &metadata)
	Verify that imported model is compatible with network architecture.
Protected Member Functions inherited from Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >
template<typename TComponent>
std::shared_ptr< TComponent >	getComponentAs (const std::string &name) const
	Retrieve a typed child component by name.
void	onExecutionContextSet () override
	Hook invoked after ExecutionContext is set.
virtual void	optimize ()
	Virtual hook for graph optimization after construction.
void	requireSerializableParameters () const override
	No-op override: a composite names no parameters of its own.
Protected Member Functions inherited from Mila::Dnn::Component< TDeviceType, TPrecision >
bool	hasExecutionContext () const noexcept
	Check if execution context has been set.
template<TensorDataType TParameterPrecision, typename TMemoryResource>
void	loadParameterFromBlob (const std::string &param_name, const Serialization::ITensorBlob &blob, Tensor< TParameterPrecision, TMemoryResource > &target, const shape_t &expected_shape)
	Load a tensor blob into a parameter tensor with validation.
void	publish (Compute::ComputePass pass, std::string_view stage, const ITensor &value) const
	Publish one activation to the observer, if this pass is being observed.
template<TensorDataType TParameterPrecision, typename TMemoryResource>
void	saveParameterToArchive (ModelArchive &archive, const std::string &parameter_name, const Tensor< TParameterPrecision, TMemoryResource > &parameter) const
	Write one parameter tensor into the archive under "tensors/<name>".
template<TensorDataType TParameterPrecision, typename TMemoryResource>
void	saveParameterToWriter (Serialization::SafeTensorsWriter &writer, const std::string &flat_name, const Tensor< TParameterPrecision, TMemoryResource > &parameter, Serialization::TensorSavePass pass) const
	Drive one parameter through one pass of a flat safetensors save.
void	setExecutionContext (IExecutionContext *context)
	Set the execution context for this component.

Additional Inherited Members
Static Public Member Functions inherited from Mila::Dnn::Component< TDeviceType, TPrecision >
static constexpr DeviceType	getDeviceType ()
	Compile-time device type for this component instance.
static constexpr TensorDataType	getPrecision () noexcept
	Compile-time tensor precision for this component instance.
Protected Types inherited from Mila::Dnn::Component< TDeviceType, TPrecision >
using	HostStagingMemoryResource = typename DeviceTypeTraits<TDeviceType>::host_staging_memory_resource
	Host memory a device-resident parameter stages through.
Protected Attributes inherited from Mila::Dnn::Component< TDeviceType, TPrecision >
BuildContext	build_context_ { shape_t{ 1 }, RuntimeMode::Training }
	The BuildContext stored at build time.

Detailed Description

template<DeviceType TDeviceType, TensorDataType TPrecision, typename TWeightPlan = NoWeightQuant, KvCachePolicy TKvCachePolicy = NoKvCompression>
requires PrecisionSupportedOnDevice<TPrecision, TDeviceType> && EmbeddingPrecisionRole<PrecisionPlanFor<TWeightPlan>> && LanguageModelHeadRole<PrecisionPlanFor<TWeightPlan>>
class Mila::Dnn::QwenTransformer< TDeviceType, TPrecision, TWeightPlan, TKvCachePolicy >

Qwen 3.8 transformer (decoder-only) for autoregressive inference.

Graph: TokenEmbedding -> [QwenAttentionBlock | QwenDeltaNetBlock] x N -> RmsNorm -> Linear (lm_head).

Template Parameters

TWeightPlan

A precision plan (or a bare policy, which lifts to a uniform one). The network requires the embedding and head roles on top of what its blocks require – no block instantiates a table.

Member Typedef Documentation

TokenEmbeddingType

template<DeviceType TDeviceType, TensorDataType TPrecision, typename TWeightPlan = NoWeightQuant, KvCachePolicy TKvCachePolicy = NoKvCompression>

using Mila::Dnn::QwenTransformer< TDeviceType, TPrecision, TWeightPlan, TKvCachePolicy >::TokenEmbeddingType

Initial value:

TokenEmbedding<TDeviceType, dtype_t::INT32, TPrecision,
           typename PrecisionPlan::EmbeddingTable, kEmbeddingTableResidency>

Member Function Documentation

getMemoryStats()

template<DeviceType TDeviceType, TensorDataType TPrecision, typename TWeightPlan = NoWeightQuant, KvCachePolicy TKvCachePolicy = NoKvCompression>

MemoryStats Mila::Dnn::QwenTransformer< TDeviceType, TPrecision, TWeightPlan, TKvCachePolicy >::getMemoryStats ( ) const

inlineoverridevirtual

Return the current memory allocation breakdown for this component.

Reflects allocations at the moment of the call. The returned stats naturally track the component lifecycle:

After construction – nothing; construction allocates none After build( Inference ) – parameters + T=1 state buffers After build( Training ) – parameters + T=full state buffers After setTrainingMode( Train ) – parameters + state + gradients

For CompositeComponent and Network, the returned stats are the recursive aggregate of all child components.

May be called at any time – no lifecycle preconditions.

Returns

MemoryStats reflecting current allocations.

Implements Mila::Dnn::Component< TDeviceType, TPrecision >.

getRequiredMemory()

template<DeviceType TDeviceType, TensorDataType TPrecision, typename TWeightPlan = NoWeightQuant, KvCachePolicy TKvCachePolicy = NoKvCompression>

MemoryStats Mila::Dnn::QwenTransformer< TDeviceType, TPrecision, TWeightPlan, TKvCachePolicy >::getRequiredMemory ( const BuildContext & context ) const

inlineoverridevirtual

What build( context ) would allocate for the whole model, without allocating.

At the chunk the rule picks against the device's free memory now, which is the chunk a build at this moment would take. See Specifications/MemoryFootprint.md section 11.

Reimplemented from Mila::Dnn::Component< TDeviceType, TPrecision >.

onBuilding()

template<DeviceType TDeviceType, TensorDataType TPrecision, typename TWeightPlan = NoWeightQuant, KvCachePolicy TKvCachePolicy = NoKvCompression>

void Mila::Dnn::QwenTransformer< TDeviceType, TPrecision, TWeightPlan, TKvCachePolicy >::onBuilding ( const BuildContext & context )

inlineoverrideprotectedvirtual

Hook invoked by build() to allocate component buffers.

Receives the stored BuildContext. Implementations must use config.allocationSeqLen() when sizing output buffers – this is the single call that makes Inference and Training allocate the correct buffer sizes automatically without per-component logic.

// Example -- Linear component:
shape_t out_shape =
{
    config.batchSize(),
    config.allocationSeqLen(),   // 1 for Inference, T for Training
    config_.getOutputFeatures()
};
output_ = std::make_unique<TensorType>( device, out_shape,
    this->getName() + ".output" );

The default implementation forwards to the legacy onBuilding( const shape_t& ) overload for backwards compatibility. New components should override this overload directly.

Note

Do not call build() or onBuilding() from within this hook.

Implementations should either succeed fully or leave no partial state, as a failed build() may be retried.

Takes the build-time configuration; use its allocationSeqLen() to obtain the correct output buffer sequence dimension.

Reimplemented from Mila::Dnn::Component< TDeviceType, TPrecision >.

onTrainingModeChanging()

template<DeviceType TDeviceType, TensorDataType TPrecision, typename TWeightPlan = NoWeightQuant, KvCachePolicy TKvCachePolicy = NoKvCompression>

void Mila::Dnn::QwenTransformer< TDeviceType, TPrecision, TWeightPlan, TKvCachePolicy >::onTrainingModeChanging ( TrainingMode training_mode )

inlineoverrideprotectedvirtual

Hook invoked when training mode is about to change.

Propagates the new mode to all child components. The hook runs with the Component's training mutex held; it MUST NOT call setTrainingMode().

Parameters

training_mode

New training mode (Normal or Eval)

Reimplemented from Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >.

prefillChunking()

template<DeviceType TDeviceType, TensorDataType TPrecision, typename TWeightPlan = NoWeightQuant, KvCachePolicy TKvCachePolicy = NoKvCompression>

PrefillChunking Mila::Dnn::QwenTransformer< TDeviceType, TPrecision, TWeightPlan, TKvCachePolicy >::prefillChunking ( dim_t B, dim_t T_ctx ) const

inline

The prefill chunk this context length would use, and the largest the context permits.

The largest rung whose whole predicted footprint fits the device's free memory, read now. Allocates nothing, so a caller may ask before the network is built; two calls made at different moments can disagree. See Specifications/MemoryFootprint.md section 11.

prefillFrom()

template<DeviceType TDeviceType, TensorDataType TPrecision, typename TWeightPlan = NoWeightQuant, KvCachePolicy TKvCachePolicy = NoKvCompression>

TensorType & Mila::Dnn::QwenTransformer< TDeviceType, TPrecision, TWeightPlan, TKvCachePolicy >::prefillFrom ( const TokenIndexType & input, dim_t start_offset )

inlineoverride

Chunked prefill starting at an absolute position (prompt-prefix reuse).

input is the FULL prompt tensor, so token index and absolute position coincide.

Prefix reuse will not survive Phase 3: a recurrent state cannot be rewound (section 7), so with 48 of 64 layers refusing, the all-or-nothing rewind always fails and every start_offset above 0 becomes unreachable through the model layer. The path stays because it is correct for the layers that do cache, and because snapshot and restore – which does work on a constant-size state – is Phase 6.

rewindKvCache()

template<DeviceType TDeviceType, TensorDataType TPrecision, typename TWeightPlan = NoWeightQuant, KvCachePolicy TKvCachePolicy = NoKvCompression>

bool Mila::Dnn::QwenTransformer< TDeviceType, TPrecision, TWeightPlan, TKvCachePolicy >::rewindKvCache ( dim_t position )

inlineoverridevirtual

Rewind every layer's cache to position.

All-or-nothing to the caller.

Reimplemented from Mila::Dnn::LanguageModelNetwork< TDeviceType, TPrecision >.

save_()

template<DeviceType TDeviceType, TensorDataType TPrecision, typename TWeightPlan = NoWeightQuant, KvCachePolicy TKvCachePolicy = NoKvCompression>

void Mila::Dnn::QwenTransformer< TDeviceType, TPrecision, TWeightPlan, TKvCachePolicy >::save_ ( ModelArchive & archive, SerializationMode mode ) const

inlineoverrideprotectedvirtual

Hook for concrete classes to save type-specific state.

REQUIRED override for concrete networks. Must write:

• Type identifier (e.g., "type": "MnistClassifier")
• Configuration parameters (batch_size, architecture constants)
• Shape metadata (for validation during Load())

This metadata enables the concrete class's Load() method to reconstruct the network.

Example implementation:

void save_(ModelArchive& archive, SerializationMode mode) const override
{
    json meta;
    meta["type"] = "MnistClassifier";  // Type identifier for runtime dispatch
    meta["batch_size"] = batch_size_;
    meta["input_shape"] = leading_shape_;
    // ... other configuration
    archive.writeJson("network/classifier_meta.json", meta);
}

Parameters

archive	Archive to write to
mode	Serialization mode (passed from save())

Implements Mila::Dnn::Network< TDeviceType, TPrecision >.

scoreTokens()

template<DeviceType TDeviceType, TensorDataType TPrecision, typename TWeightPlan = NoWeightQuant, KvCachePolicy TKvCachePolicy = NoKvCompression>

SequenceLogLikelihood Mila::Dnn::QwenTransformer< TDeviceType, TPrecision, TWeightPlan, TKvCachePolicy >::scoreTokens ( const TokenIndexType & input )

inlineoverride

Teacher-forced log-likelihood of input – the corpus-perplexity path.

Runs the same prefill the generation path runs, but evaluates the head at EVERY position instead of the final one, reading off the probability the model gave to the token that actually followed. A whole chunk of logit rows cannot be materialized at once (section 5), so the head is evaluated in windows of getLanguageModelHeadPositions() rows inside the chunk loop, and each window is reduced before the next overwrites it.

The reduction is on the HOST, in double. That is deliberate for a first implementation and is the slow part: every position moves a full logit row across PCIe and is reduced single-threaded, so this is minutes on a corpus rather than seconds. It is also the trustworthy version – a device kernel is an optimization that this can serve as the oracle for.

A width of 1 is valid and costs one head evaluation per token, which is decode's price. Widening trades memory for passes and changes no result.

toString()

template<DeviceType TDeviceType, TensorDataType TPrecision, typename TWeightPlan = NoWeightQuant, KvCachePolicy TKvCachePolicy = NoKvCompression>

std::string Mila::Dnn::QwenTransformer< TDeviceType, TPrecision, TWeightPlan, TKvCachePolicy >::toString ( ) const

inlineoverridevirtual

Generate a human-readable description.

Returns

String representation showing network name and children

Reimplemented from Mila::Dnn::Network< TDeviceType, TPrecision >.

Member Data Documentation

kEmbeddingTableResidency

template<DeviceType TDeviceType, TensorDataType TPrecision, typename TWeightPlan = NoWeightQuant, KvCachePolicy TKvCachePolicy = NoKvCompression>

EmbeddingTableResidency Mila::Dnn::QwenTransformer< TDeviceType, TPrecision, TWeightPlan, TKvCachePolicy >::kEmbeddingTableResidency

staticconstexpr

Initial value:

                                                              =
( TDeviceType == DeviceType::Cuda )
? EmbeddingTableResidency::Host : EmbeddingTableResidency::Device

---

The documentation for this class was generated from the following file:

• Mila/Src/Dnn/Components/Transformers/Qwen/Qwen.ixx
